CANON®
BJ-8, BJ-10e, BJ-10ex, BJ-10sx, BJ-100, BJ200, BJ-200e, BJ-200ex, BJ-230,
BJC-210, BJC-240, BJC-25, BJC-1000,
APPLE® Stylewriter
I, II, 1200 Portable,
1500
( BC-01, BC-02, BC-05, BX-02
)
EPSON® Stylus
300 ( S020031 )
1. Using the screw provided remove the
vented plug(s) from the filler hole(s). (Twist it into the
small vent hole and pull the plug out). Or increase the size of the vent
hole(s), using the screw, to allow the filling needle in.
2. Assemble the syringe and
filling needle and fill
with the appropriate colour
ink.
3. Insert the syringe through

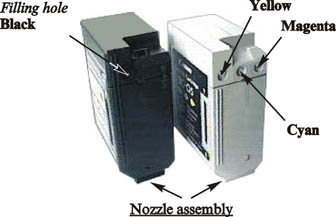

the appropriate filling hole, ( See diagram
for filling hole colour ) and
push into the cartridge.
Note: The cartridge contains sponge
and a slight resistance may be felt. Continue pushing inwards
until the filling needle reaches the other side of the
cartridge.
4. Inject up to 20ml. of ink (BC-01/02) or 7ml.
(BC-05) or until ink appears at the filling hole.
Unused ink may be returned to the bottle.
Clean the syringe with water and dry for future use, or use with
a different colour
ink.
5. Refit the plug(s) in the
filler hole(s) if removed in step one.
6. Replace the cartridge and run a
priming cycle as per printer instructions.
Note: Empty
cartridges should be
refilled immediately.
|
|
