CANON®
BJC 4000, 4100, 4200, 4300, 4400, 4550, 5000, Multipass C2500,
C3000, C3500, C5000, C5500,
APPLE® Color
Stylewriter Pro 2400, 2500
( BC-20, BCI-21
)
1. Remove the top
of BCI-21 cartridges using a

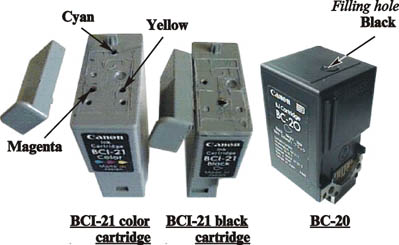

penknife. ( See diagram above )
2. Enlarge the filling hole(s) in the top of the
cartridge(s) using the screw provided.
3. Assemble the syringe and
filling needle and fill
with the appropriate colour
ink.
4. Insert the syringe through the appropriate
filling hole, (See diagram for filling hole colour) and push into
the centre of the cartridge.
Note: The cartridges contain sponge
and a slight resistance may be felt.
5. Slowly inject up to 5ml. of ink (BCI-21) or
30ml. (BC-20). When full some ink may overflow
from the filling and outlet holes.
6. Replace the top and
secure with adhesive tape ( BCI-21 ).
7. Unused ink may be returned to the bottle. Clean
the syringe with water and dry for future use, or use with a different
colour ink.
8. Replace the cartridge(s) and run a priming
cycle as per printer instructions.
|
|
