CANON®
BJ 130, BJ 300, BJ 330, BJC 800, BJC 820, BJC 880
EPSON® SQ 870 / 1170
1. Assemble the syringe
and filling needle and fill with ink.

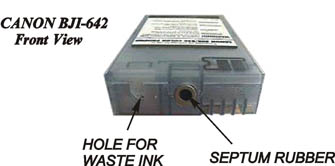

2. Hold cartridge with the filling hole upwards,
insert the tip of the needle only through the "septum"
rubber seal, and inject up to 40 ml. of ink.
Important: Insertion too
far may puncture the internal bladder
of the cartridge.
3. Air bubbles must not be injected
into the cartridge as they may cause irregular
printing. If air is introduced it should
be
withdrawn by careful
sucking with the syringe.
4. The cartridge should now be installed
to the printer, and is ready for use.
5. Clean the syringe with water and dry
for future use, or use with a
different colour ink.
|
