COLOUR CARTRIDGES

1. The filler holes of the cartridge are located  under  the  red  top. Remove the top before refilling  by carefully levering it off  with  a thin   metal   blade,   such   as   a   penknife.

Important: Be very careful not to damage the sensors on the back   of   the   cartridge.

2. Assemble the syringe and filling needle and fill with the correct colour   ink.

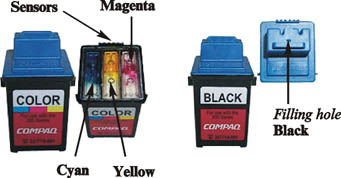

3. Insert the filling needle into the filler hole  of  the  colour  to  be refilled, ( see diagram above ) and push downwards  all  the  way into the cartridge.

Note: The cartridge contains sponge and a slight resistance may be felt.

4. Slowly inject up to 8ml. of  ink  until  the  sponge  is  saturated.

Important:   The original color of the  sponge is  white.  In  order to  avoid  overfilling  the  cartridge  do  not  change  the  colour  of the sponge to the colour you are filling. When the ink just begins to surface where  the needle is inserted, stop filling, the cartridge is  full.   Clean the  syringe  with  water,  and dry  before  refilling with   another  colour.

5. After  refilling the top can be refitted  and  fixed  with adhesive tape.

BLACK CARTRIDGES

1. Enlarge    the     filling     hole    using    the   screw    provided. ( Do   not   remove   the   top ).

2. Fill the syringe with ink,  insert the filling needle into the  filling hole and push downwards   into   the   center  of   the   cartridge. Slowly  inject  up  to   20 ml.  of   ink  until  the  reservoir   is   full.

Note:   Empty   cartridges   should   be   refilled   immediately.

---
