EPSON®
Stylus 820, Color II/IIS, 200, 500, 1500
( S020047, S020049,
S020097 )
1. Seal the outlet hole(s) in the base of the cartridge
with adhesive tape. A separate piece over each hole is preferred.

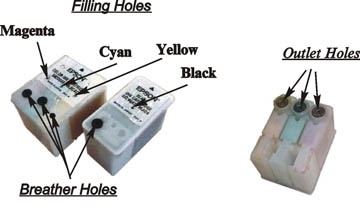

2. Make breather holes using a small (1/8”or
3 mm ) drill, awl, or other pointed implement
in positions shown above.
3. Assemble the syringe and
filling needle and fill
with the appropriate colour ink.
4. Push needle through the label all the
way into the cartridge of the correct filling hole. Very
slowly inject ink into the sponge until the cartridge
is full. (This will saturate the sponge with ink and refill the reservoir
).
5. Seal the breather hole(s) with
the plugs supplied or adhesive tape.
Note: If the breather holes
are not sealed properly the cartridge will leak.
6. Unused ink may be returned to the
bottle. Clean the syringe with water and dry for future
use, or use with a different colour ink.
7. Replace the cartridge with the tape still
on the outlet holes and run cleaning cycles as
per printer instructions. If necessary leave for
up to 24 hours. ( Allows ink to flow to the
print head ).
Note: If cartridge is refilled before
it is completely empty this time is greatly
reduced.
|
