EPSON®
Stylus Color 440, 640, 740
( S020187, S020189, S020191
)

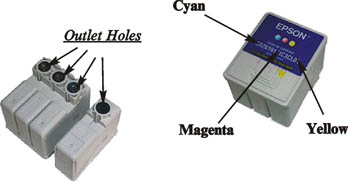

1. Seal the outlet hole(s) in the base of the
cartridge with adhesive tape. A separate piece over each hole is preferred.
2. Assemble the syringe and
filling needle and fill
with the appropriate colour ink.
3. Push needle through the label all the
way into the cartridge of the correct filling hole.
Very slowly inject ink into the sponge until the cartridge
is full. ( This will saturate the sponge with
ink and refill the reservoir ).
4. Seal the hole(s) made
in the top label with adhesive tape.
Note: If the holes are not
sealed properly the cartridge will leak.
5. Unused ink may be returned to the bottle. Clean
the syringe with water and dry for future use, or use with a different
colour ink.
6. Replace the cartridge leaving the adhesive
tape on the outlet hole(s) and run 1 - 3 cleaning cycles as per printer
instructions.
If necessary leave cartridge in printer for up
to 24 hours. ( Allows ink to flow
to the print head ).
Note: If cartridge is refilled
before it is completely empty this time is greatly reduced.
|
