1. Temporarily sea l the outlet hole(s) in the base of the cartridge with adhesive tape. A separate piece over each is preferred.

2. Peel back the  bottom  of  the  sticky  label to  reveal  the  sealed filling   hole(s).

3. Assemble  the  syringe   and  filling   needle   and   fill   with   the appropriate   colour   ink.

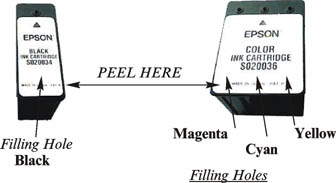

4. Puncture the seal to the filling hole with the filling  needle.  ( See diagram  for  filling hole colour ). Insert the filling needle half  an inch ( 12.5 mm) into the cartridge.

Note:  The cartridge contains sponge and a slight  resistance  may be  felt.

5. Slowly inject up to 12 ml. of ink or until ink appears at  the  filling hole.

6. Seal   the   filling   hole   with   some   adhesive   tape.

7. Unused ink may be returned  to  the  bottle.   Clean  the  syringe with water and dry for  future  use,  or use  with  a  different  colour ink.
8. Replace the cartridge in the printer  and  allow  to  stand  for  up to  24  hours.  ( Allows  ink  to  flow  to  the  print  head ).

Note: If cartridge is refilled before it is empty this  time  is  greatly reduced.

9. Replace the cartridge and  run  a  priming  cycle  as  per  printer
instructions.

---
