1. Cut label at joint between top and bottom cap of cartridge case.

2. Flip    back    bottom    cap    of    cartridge.

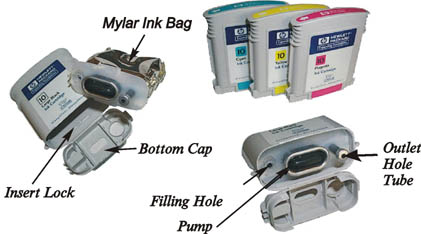

3. Squeeze sides of cartridge case and carefully wiggle out mylar ink    bag    and     pump    assembly    from    the     insert     lock.

4. Screw   the  plug  extractor   into  the   center   of   the   rubber sealing   plug,  ( situated in the  filling  hole )  until  a  firm  grip  is established and pull out the plug. ( Leave the plug on the end  of the    screw    extractor ).

5. Inject the ink through the filling hole into the mylar ink bag. (Do not insert the needle in more than 12.5 mm (1/2")  into the bag or else  the  mylar  ink  bag  may  be  punctured ).

6. Fill  with ink  until  ink appears at the bottom of  the  filling  hole and  then  reseal  by pushing back  in the   rubber plug.  ( Push in with the plug on the end of the screw and then remove the screw from   the   plug ).

7. Remove the  excess  air  from  the  mylar  ink  bag  and  pump assembly    as    follows:
a. Hold assembly at a 45° angle with outlet hole tube at  the  top.
b. Insert needle of empty  injector ( with plunger pushed in )  into outlet   hole   tube.
c. Press and release  pump  several  times  which  will  expel air into   the   syringe.
d. Pull back the plunger  on the syringe to remove  any  air  from the   outlet   hole   tube   and   then   withdraw   the   needle.

8. Replace the mylar ink bag assembly  into  the  cartridge  case and   clip   the   bottom   back   into   position.

9. Install   the   cartridge   back   into   printer.

---
