Colour  cartridges

1. The filler holes of the cartridge are located  under  the  red  top. Remove the top before refilling by carefully  levering  it  off  with a thin   metal   blade,   such   as   a   penknife.
2. Assemble the syringe and filling needle and fill with the correct colour   ink.

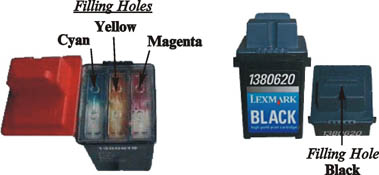

3. Insert the filling needle into the filler  hole  of  the  colour  to  be refilled, ( see diagram above ) and  push downwards all  the  way into   the   cartridge.

Note: The cartridge contains sponge and a slight resistance may be felt.

4. Slowly inject up to  8ml. of  ink  until  the  sponge  is  saturated.

Important:  The original color of the sponge is white.  In order  to avoid overfilling the  cartridge  do not  change  the  colour  of  the sponge to the colour you are filling. When the  ink just  begins  to surface where the needle  is  inserted,  stop filling,  the  cartridge is  full.

Clean the syringe with water, and dry before refilling  with another colour.

5. After refilling the top can be  refitted  and  fixed  with  adhesive tape.

Black  cartridges

1. Enlarge the filling hole using the islet screw provided. ( Do not remove  the  top ).

2. Fill the syringe with ink, insert the filling needle  into  the  filling hole and push downwards into the center of the cartridge. Slowly inject    up    to    20 ml.   of    ink    until    the    reservoir   is   full.

Note:    Empty   cartridges    should    be   refilled   immediately.

---
