1. Remove the yellow handle when refilling the colour cartridge to reveal the filling holes.  ( Pull, or lever off using a penknife ).

2. Assemble  the  syringe  and  filling  needle and fill with the appropriate colour ink.

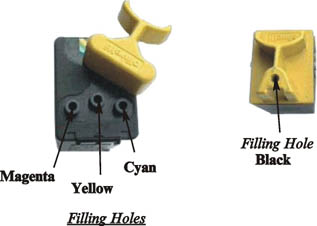

3. Insert the syringe  through  the  appropriate  filling  hole,  ( See diagram for filling hole colour ) and  push  into  the  centre  of  the cartridge.

Note: The cartridges contain sponge and a slight resistance may be felt.

4. Slowly inject up to 15ml. of ink ( black ) or 5ml. ( colour ). When full some ink may overflow from the filling holes.

5. Unused ink may be returned to the bottle. Clean the syringe with water and dry for future use,or use with a different colour ink.

6. Replace    the    yellow    handle    on    the    colour    cartridge.

7. Replace the cartridge and  run a priming  cycle  as  per  printer instructions.

Note:   Empty    cartridges    should    be    refilled    immediately.

---
