XEROX®
DocuPrint XJ8C & XJ9C
( 8R7880, 8R7881, )
( 8R7882, 8R7883 )
COLOUR CARTRIDGES

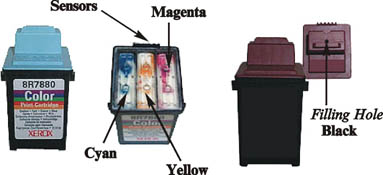

1. The filler holes of the cartridge are located
under the red top. Remove the top before refilling
by carefully levering it off with a thin metal
blade, such as a penknife.
Important: Be very careful not to damage
the sensors on the back of the cartridge.
2. Assemble the syringe and filling needle and
fill with the correct colour ink.
3. Insert the filling needle into the filler hole
of the colour to be refilled, ( see diagram above
) and push downwards all the way into
the cartridge.
Note: The cartridge contains sponge
and a slight resistance may be felt.
4. Slowly inject up to 8ml. of ink
until the sponge is saturated. Important:
The original color of the sponge is white. In order
to avoid overfilling the cartridge do
not change the color of the sponge to the colour
you are filling. When the ink just begins to surface where the needle
is inserted, stop filling, the cartridge is full. Clean
the syringe with water, and dry before
refilling with another colour.
5. After refilling the top can be refitted
and fixed with adhesive tape.
BLACK CARTRIDGES
1. Enlarge the
filling hole using
the screw provided. ( Do not
remove the top ).
2. Fill the syringe with ink, insert the
filling needle into the filling hole and push downwards
into the center of the
cartridge. Slowly inject up to 15 ml.
of ink until the reservoir is
full.
Note: Empty
cartridges should be refilled
immediately.
|
